Case Study
Case Study
Samples
HIPed samples
![Casting product of heat resistance steel](/dcms_media/image/hip-05.jpg)
![Aluminum alloy impeller](/dcms_media/image/hip-06.jpg)
![Diffusion bonding of Copper & Aluminum](/dcms_media/image/hip-07.jpg)
![Diffusion bonding of stainless steel & Copper](/dcms_media/image/hip-08.jpg)
![Diffusion bonding of stainless steel and titanium alloy,
and aluminum alloy and titanium alloy](/dcms_media/image/hip-09.jpg)
![HOM damper](/dcms_media/image/hip-10.jpg)
Heat treatment samples

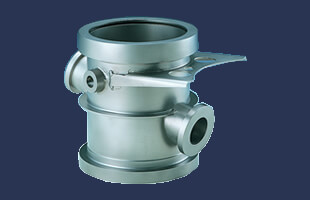

![Airplane part
Stress relief heat treatment of Ti-6Al-4V](/dcms_media/image/heat-09.jpg)
Stress relief heat treatment of
Ti-6Al-4V
![Solution treatment / age hardening of airplane parts](/dcms_media/image/heat-10.jpg)
Solution treatment / age hardening of airplane parts

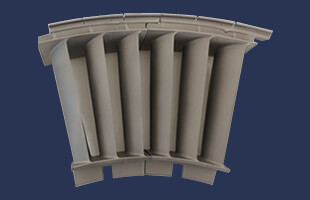

![Solution treatment /age hardening of precision castings](/dcms_media/image/heat-11.jpg)
Solution treatment /age hardening of precision castings
Brazing processed examples
![Gas turbine honeycomb seal
Ni brazing](/dcms_media/image/sintering-02.jpg)
![Optical equipment
Ni brazing of SUS](/dcms_media/image/sintering-03.jpg)
![Waveguide
Ag brazing of SUS and Cu](/dcms_media/image/sintering-04.jpg)
![Brazed cooling plate
Aluminium alloy](/dcms_media/image/sintering-09.jpg)
![Diffusion bonded Titanium part with a hollow structure](/dcms_media/image/sintering-07.jpg)
![Diffusion bonded heat exchanger plate
Ni alloy](/dcms_media/image/sintering-10.jpg)
Example welded products
![Tig welding](/dcms_media/image/sintering-15_1.jpg)
![Welded bellows connecting pipe](/dcms_media/image/sintering-15_3.jpg)
Samples of Additive Manufacturing
Aviation
![](/dcms_media/image/jumper-01.png)
Turbine blades additively manufactured from Titanium aluminide, TiAl. An example of the three stages of as built, HIPed, and machined finish.
※Manufactured as a part of Cross-ministerial strategic innovation promotion program (SIP)
Power Generation
![](/dcms_media/image/jumper-03.png)
3D printing & HIP - Able to achieve high value-added complex shapes without casting molds for the build
Bicycle
![](/dcms_media/image/jumper-02.png)

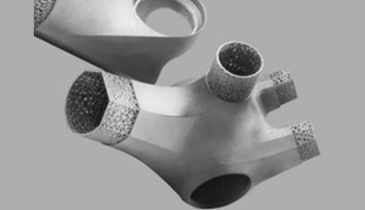

Bicycle parts additively manufactured to achieve a reduction of weight using a 3D lattice structure with a 0.5mm thickness plate and high elasticity.
※Photo credit : Triple Bottom Line & CEREVO
Interior design
![](/dcms_media/image/jumper-04.png)
An example of additively manufactured interior design for lights, expressing organic shapes through additive manufacturing. The design was chosen for additive manufacturing due to being difficult to create using existing or traditional methods.
※Photo credit: Triple Bottom Line
R&D
![](/dcms_media/image/jumper-05.png)

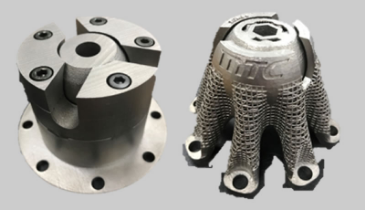

An example of Metal Technology Co. Ltd.’s ability to utilize both topology optimization structure design and effective lattice structures to create parts that are cost effective, better suited to the customer’s needs, reduced weight, and technically superior.
Medical Equipment
![](/dcms_media/image/jumper-06.png)
An additive manufactured medical piece for the orthopedic field which can be custom-made through a 3D printed design and process.
